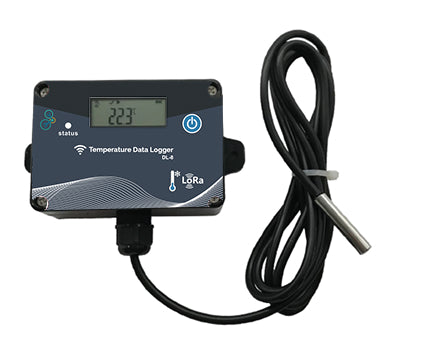

DL-8 Temperature Sensor

DL-8 Sensor (Original Model – Fridge Use Only)

The DL-8 sensor is our original model, now being phased out in favor of the upgraded DLC-8 sensor, which comes with an improved temperature probe.

This DL-8 is best suited for fridge applications only and integrates with the ComplianceTrackr app for automated logging and compliance monitoring.

Key Benefits

• Reliable fridge-use sensor.

• Long-lasting built-in, replaceable battery (up to 3 years).

• LoRa connectivity with up to 2 km range in open areas.

• Accurate and stable temperature monitoring.

• Seamless integration with ComplianceTrackr.

Technical Specifications

• Battery: Built-in 4000 mAh / 3.6 V (replaceable)

• Measuring Medium: Ambient air (via probe)

• Temperature Probe Range: –55 °C to +125 °C

• Temperature Accuracy: ±0.5 °C (–10 °C to +85 °C), ±1 °C (other ranges)

• Operating Conditions: –30 °C to +60 °C

• RF Frequency: 915 MHz

• Modulation: LoRa

• Transmit Power: 20 dBm (adjustable)

• Transmit Interval: Default 15 min (adjustable)

• Ingress Protection: IP54

• Battery Life:

  • Up to 3 years (default settings)

  • Up to 2 years (in freezer conditions)

• Dimensions: 106 × 57 × 33 mm

• Weight: 135 g
