DLC-8 Fridge Freezer Temperature Sensor

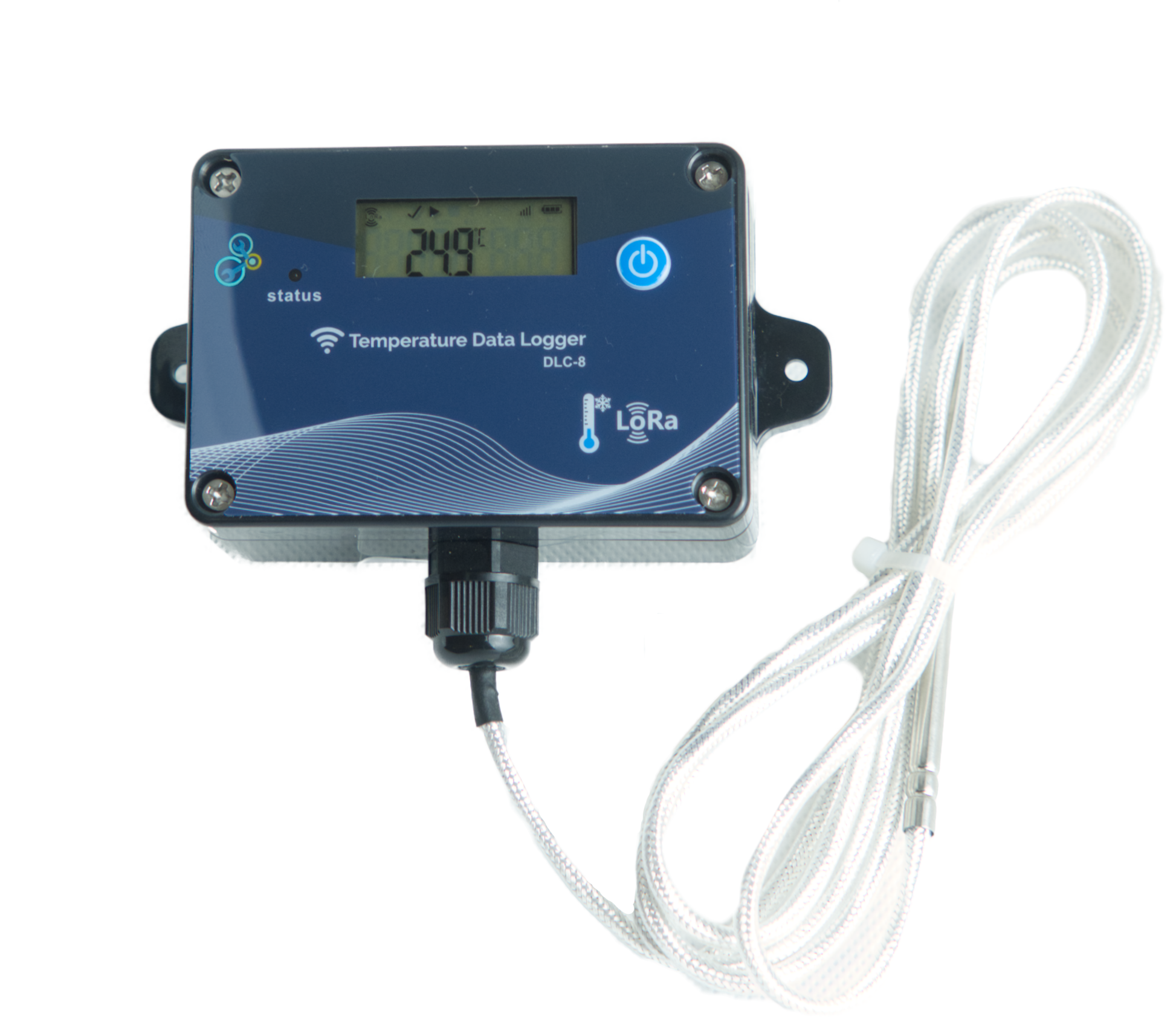

DLC-8 Sensor with PT100 Probe (Fridge & Freezer Use)

The updated DLC-8 sensor comes with an improved PT100 temperature probe end, designed for reliable and accurate monitoring in both fridges and freezers. Integrated with the ComplianceTrackr app, it allows for automated data logging to help maintain compliance with food safety standards.

Key Benefits

• Recommended for fridge and freezer applications.

• Improved PT100 probe for higher accuracy.

• Long-range LoRa wireless transmission (up to 2 km).

• Adjustable logging interval (1 min to 24 hours).

• Large internal memory (stores up to 50,000 records).

• Long-lasting built-in battery (up to 1 year at 5-minute intervals).

For assistance with setup or operation, please contact support@sm8a.com.au.

Technical Specifications

• Battery: Built-in 4000 mAh / 3.6 V

• Measuring Medium: Ambient air

• Temperature Probe Range: –100 °C to +70 °C

• Temperature Accuracy: ±0.5 °C

• Operating Conditions: –30 °C to +60 °C

• RF Frequency: 915 MHz

• Modulation: LoRa

• Transmit Power: 20 dBm (adjustable)

• Maximum Transmission Range: Up to 2 km (open area)

• Transmit Interval: 1–1440 minutes (user definable, default 5 min)

• Standby Current: <5 µA

• Ingress Protection: IP54

• Memory Capacity: 50,000 records

• Battery Life: Up to 1 year (with 5-minute intervals)

• Dimensions: 106 × 57 × 33 mm

• Weight: 135 g
