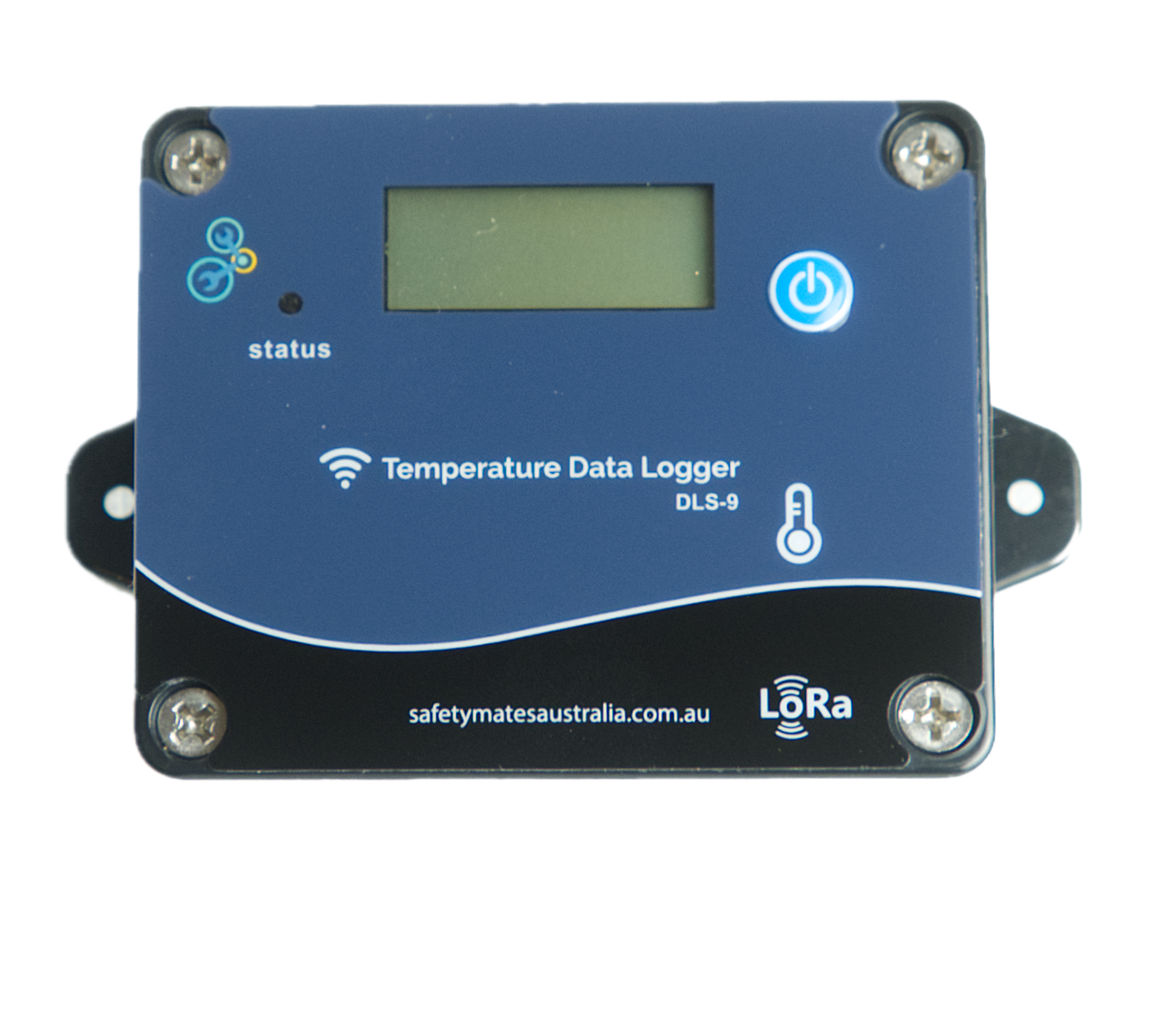

DLS-9 High Temperature Sensor

Hot Storage Probe Sensor (K-Type / T-Type Compatible)

This high-temperature probe sensor is designed for monitoring hot storage areas, ovens, and hot holding units. Paired with the ComplianceTrackr app, it allows you to automate temperature recording for compliance and efficiency. The sensor is also compatible with the app’s Time Temperature Log (TTL) feature.

⚠️ Important Note:

• The sensor box must never be placed inside ovens or hot boxes — only the probe end is heat resistant.

• If you switch probe types (K or T), please email support@sm8a.com.au and we will remotely update the sensor settings.

Key Benefits

• Automates temperature recording for hot storage and ovens.

• Supports both K-Type and T-Type probes.

• Long battery life (up to 3 years with standard intervals).

• Wide temperature range with high accuracy.

• Long-range wireless communication using LoRa technology.

Technical Specifications

• Battery: Built-in 4000 mAh / 3.6 V

• Measurement Medium: Ambient air

• Thermocouple Measuring Range:

  • K-Type: –200 °C to +1370 °C

  • T-Type: –200 °C to +400 °C

Accuracy:

• > 100 °C: ±1 °C
• <100 °C: ±2 °C

• Operating Environment: –30 °C to +60 °C; 0–85% RH (non-condensing)

• RF Frequency: 915 MHz

• Modulation: LoRa

• Maximum Transmission Range: Up to 2 km (open area)

• Transmit Power: 20 dBm (adjustable)

• Transmit Interval: 1–1440 minutes (user definable)

• Standby Current: <5 µA

• Ingress Protection: IP54

• Battery Life:

  • Up to 3 years (15-minute intervals)

  • Up to 2 years (in freezer conditions)

• Dimensions: 106 × 57 × 33 mm

• Weight: 135 g
