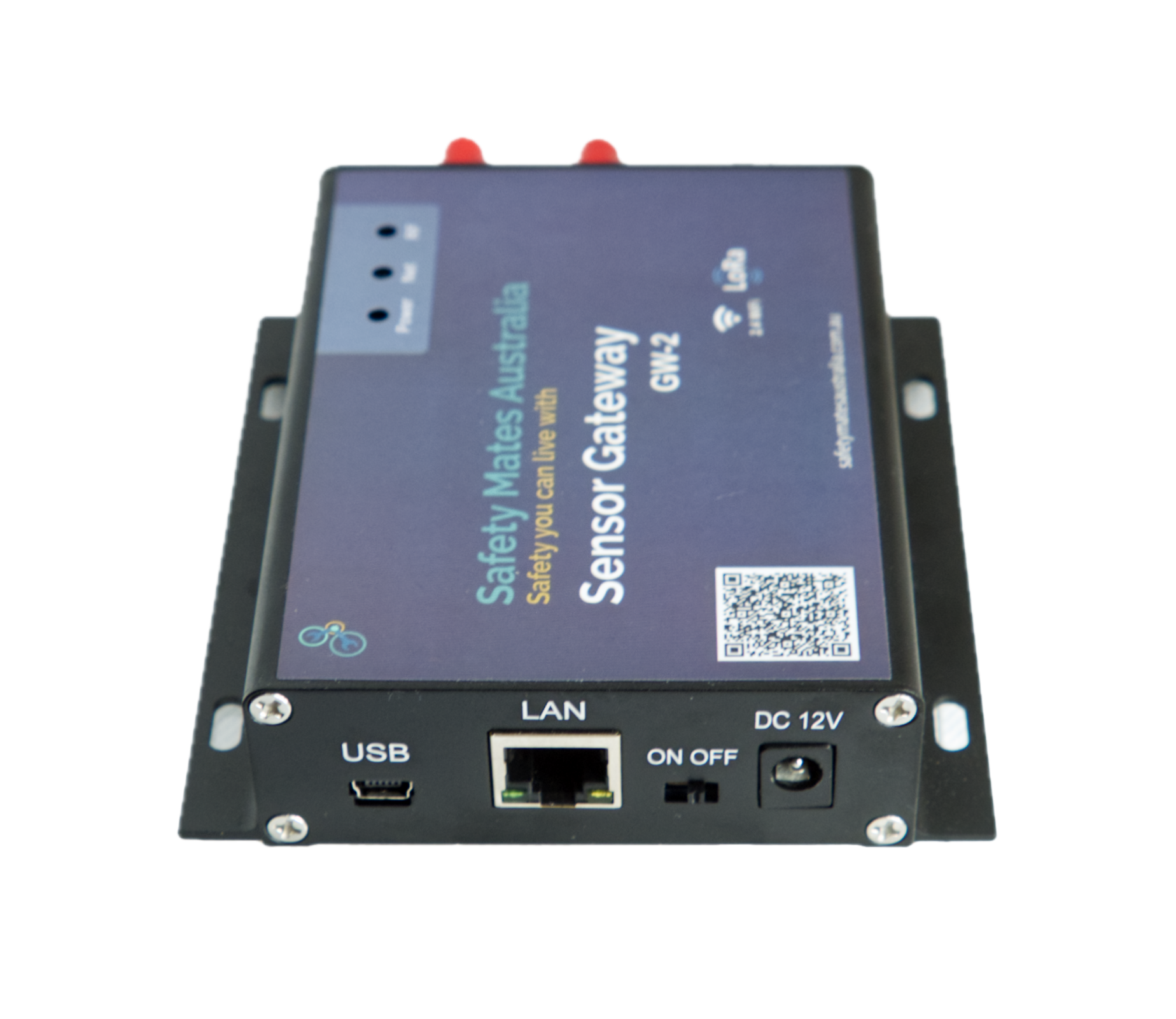

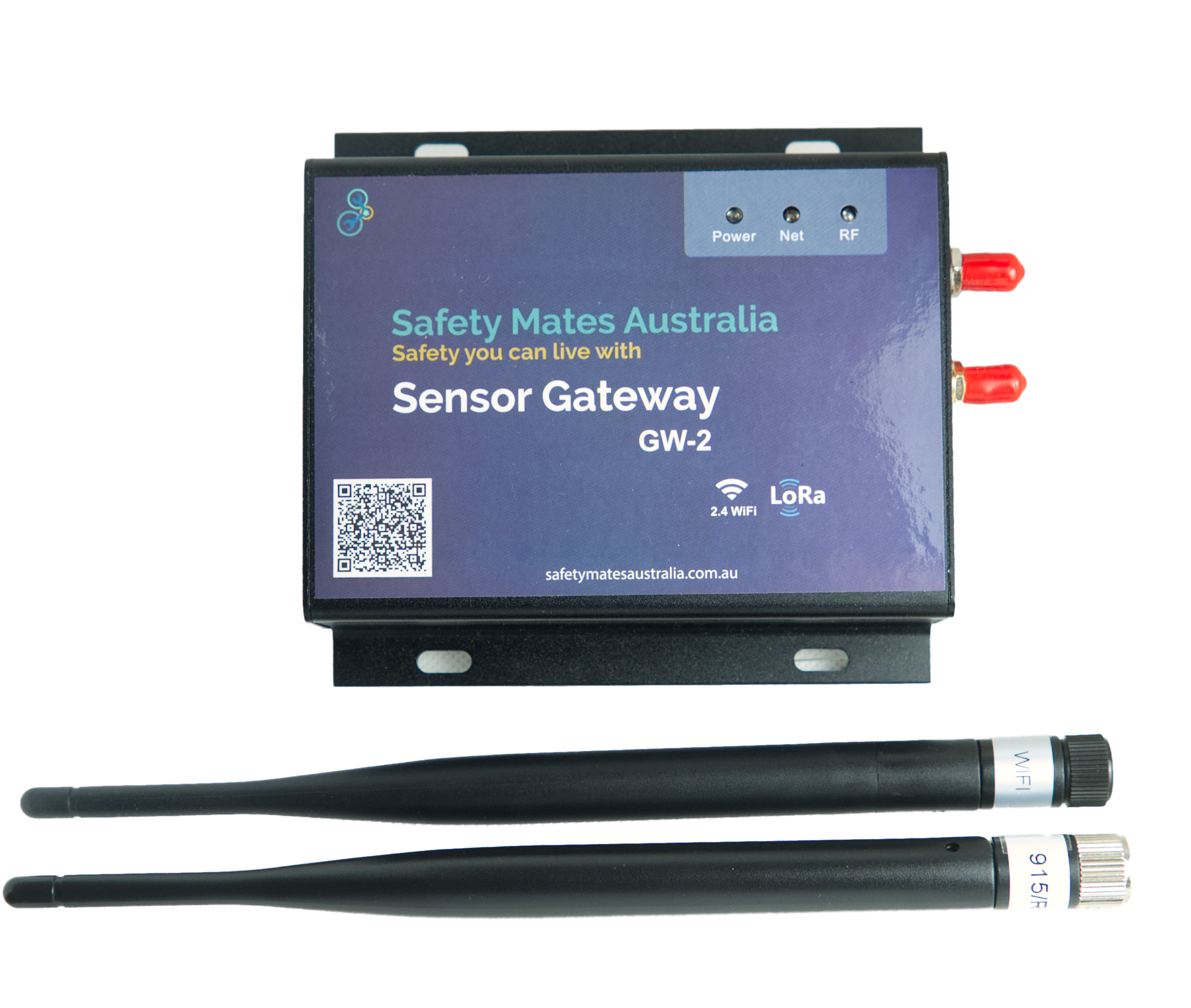

GW-2 WiFi/LAN Gateway Hub

LoRa Hub for ComplianceTrackr Sensors

These hubs are preconfigured for use with the ComplianceTrackr application and provide seamless connectivity for your DL* Series Sensors.

⚠️ Important Notes:

• A ComplianceTrackr subscription is required to use this hardware.

• If you’re unsure about compatibility, please contact support@sm8a.com.au.

Technical Specifications

• RF Frequency: 915 MHz

• RF Receiving Sensitivity: -148 dBm

• RF Modulation: LoRa

• Sensor Identification Angle: 3D

• Interface: LAN, WiFi (2.4 GHz only)

• LED Indicators: 3 LEDs (RF, NET, Power)

• Power Supply: 12V

• Net Weight: 0.27 kg

• Operating Temperature: -20 °C to +60 °C

• Operating Humidity: 5% – 95% (non-condensing)

• Dimensions: 112 mm × 105 mm × 27 mm

✅ Required for ComplianceTrackr DL Series Sensors.*
