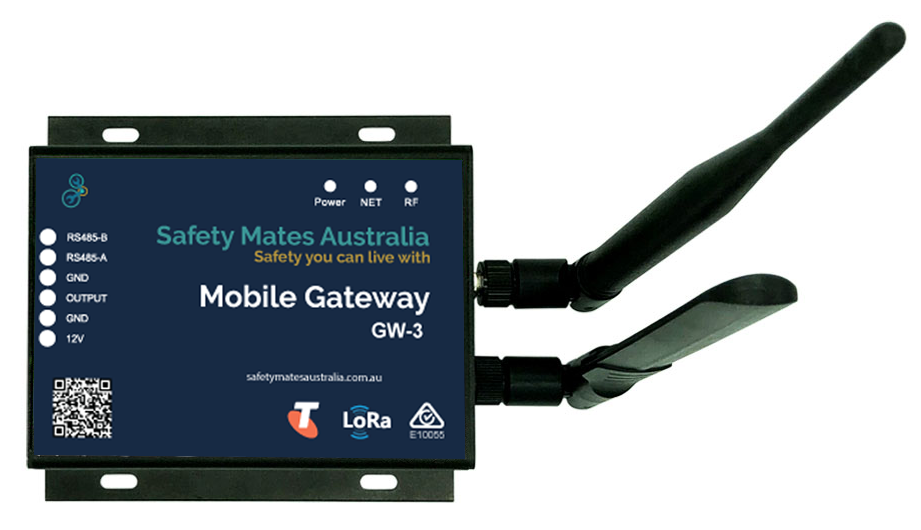

GW-3 4G Gateway Hub (No SIM Supplied)

4G Hub for ComplianceTrackr Sensors

These hubs are preconfigured for use with the ComplianceTrackr application and are required to connect with any of the DL Series Sensors*.

⚠️ Important Notes:

• A ComplianceTrackr subscription is required to use this hardware. If unsure, please contact support@sm8a.com.au.

• A SIM card is required. You may use your own SIM, or purchase one with the hub. (Provided SIMs are locked to the hub’s IMEI number.)

• In Australia, only 4G connectivity will be used.

Technical Specifications

• RF Frequency: 915 MHz

• RF Receiver Sensitivity: -148 dBm

• RF Modulation Mode: LoRa

• Sensor Identification Angle: Omni-directional

• LED Indicators: 3 LEDs (RF, NET, Power)

• Flash Memory: 32 MB

• Power Supply: DC 12V

• Net Weight: 0.27 kg

• Operating Temperature: -20 °C to +60 °C

• Operating Humidity: 5% – 95% (non-condensing)

• Dimensions: 112 mm × 105 mm × 27 mm

Supported Frequency Bands

• LTE-TDD: B34 / B38 / B39 / B40 / B41

• LTE-FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28 / B66

• UMTS/HSPA+: B1 / B2 / B4 / B5 / B6 / B8 / B19

• GSM/GPRS/EDGE: 850 / 900 / 1800 / 1900 MHz

✅ This product (or the GW-2) is required for all DL Series Sensors.*
