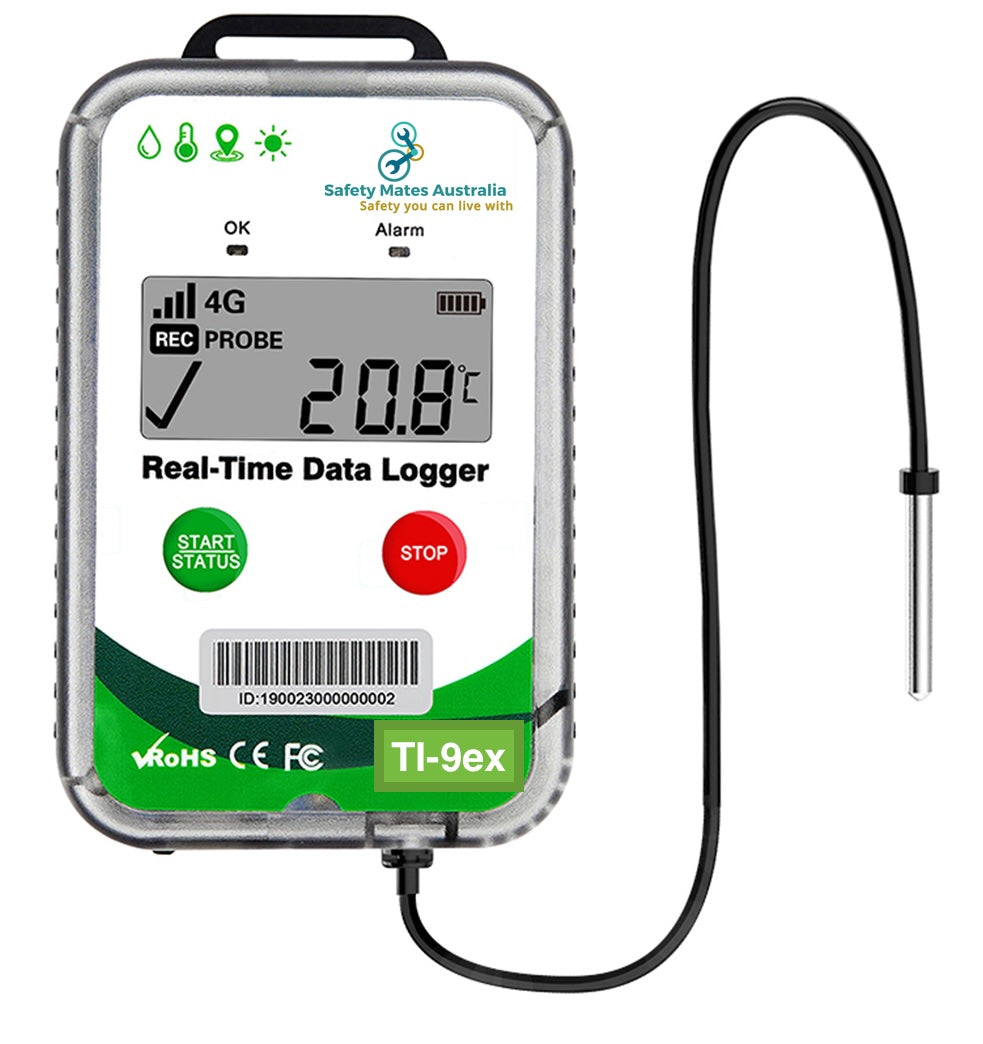

TI-9ex 4G Temperature Sensor with additional External Probe

4G Temperature & Humidity Sensor (with GPS & External Probe)

A versatile monitoring device with external PT100 probe and built-in Sensirion SHT30 sensor, ideal for accurate temperature and humidity tracking across a wide range of environments. Includes GPS, WiFi, and base station positioning for added visibility.

⚠️ Important Notes:

• Requires 4G network connectivity.

• Light and vibration sensors are included but not yet supported in the app.

• Rechargeable with USB-C charging.

Technical Specifications

• Sensors:

  • External Temperature: -80 °C to +120 °C (-112 °F to +248 °F)

  • Built-in Temperature: -20 °C to +60 °C (-4 °F to +140 °F)

  • Built-in Humidity: 5% to 95% RH

• Accuracy:

  • External Probe Temp: 0.15 + 0.002 × |t|

  • Built-in Temperature: ±0.3 °C (0 °C ~ +60 °C); ±0.5 °C outside range

  • Built-in Humidity: ±3% (10% ~ 90% RH); ±5% outside range

• Additional Sensors:

  • Light Sensor: 0 – 64,000 lux (not app-supported yet)

  • Vibration Sensor: 0 – 16G (not app-supported yet)

• Minimum Units: 0.1 °C / 0.1% RH / 1 lux / 0.001G

• Positioning: GPS, WiFi, LBS base station

• Network System: 4G

• Recording Interval: Default 60 min (configurable)

• Reporting Interval: Default 60 min (configurable)

• Battery: Built-in 3.7V / 4000mAh lithium rechargeable

  • Usage Time: Up to 60 days (default 60-min reporting, GPS on)

  • Charging: USB-C

• Durability: IP64-rated (dust & splash resistant)

• Dimensions: 100 mm × 66 mm × 29 mm

• Weight: 165 g

✅ Perfect for operations needing reliable, precise environmental monitoring with external probe flexibility and GPS positioning.
